Troubleshooting OAB in Exchange 2013

In this article we will be looking into issues arising in OAB after users have been migrated from exchange 2007/2010 to Exchange 2013.
Unlike the previous versions of Exchange the OAB generation process in Exchange 2013 has been completely changed. So the troubleshooting OAB part in Exchange 2013 is little bit different while compared to older versions.

If you are running older version of Exchange 2007/2010 first run the below command to change the default OAB to Exchange 2013

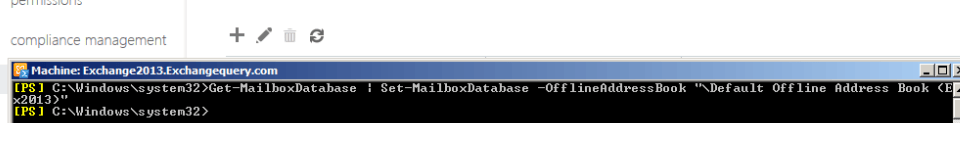

1. Run the command in Exchange 2013 EMS to change the default OAB on Exchange 2013 databases:

Get-MailboxDatabase | Set-MailboxDatabase -OfflineAddressBook “\Default Offline Address Book (Ex2013)”

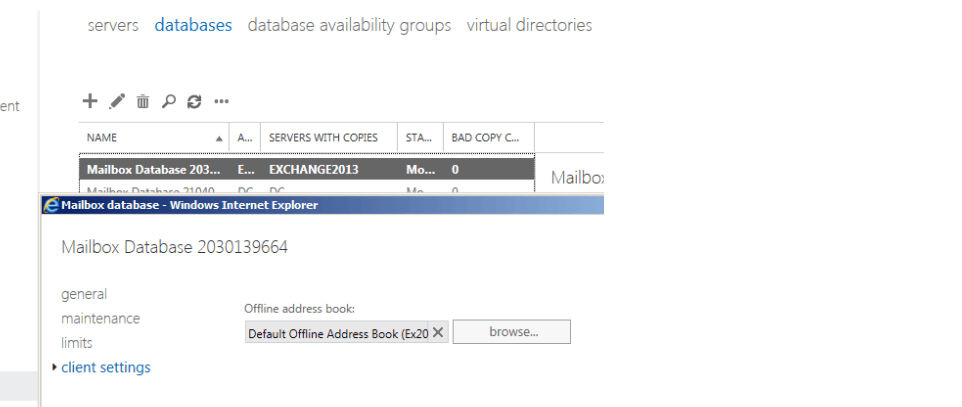

We can accomplish this task via EAC as well as shown below but this has to be done for each and every db’s one by one.
Click Servers – databases – client settings and select the default OAB to be selected for the databases.


Also check if the OAB virtual directories are set properly in Exchange 2013. You can check by running the below command

Set-OabVirtualDirectory -Identity “exchange2013\OAB (Default Web Site)” -InternalUrl -ExternalUrl

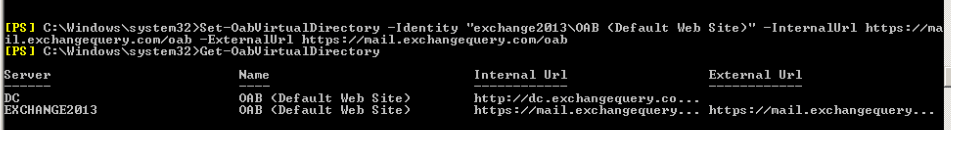

In our case since I have not set the virtual directories   on Exchange 2013 I’m running the below command to set the virtual directories first in exchange 2013 and I’m showing the output

After running the above command we can see the virtual directories showing up in external and internal url


Now let’s look into troubleshooting the OAB issues in Exchange 2013

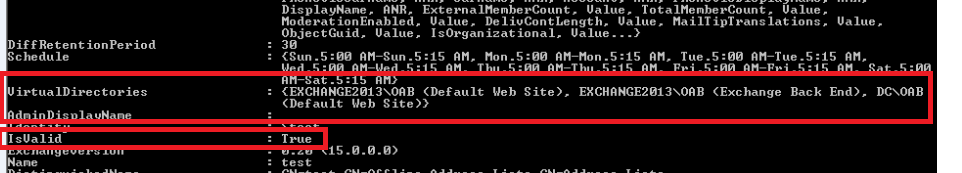

First run Get-offlineaddressbook |fl and see if the default offline address book assigned has virtual directories linked with them and is set to true as shown below.

If there are no virtual directories specified the OAB will not work.


Now we need to look if there is anything wrong in the arbitration mailbox which holds the OAB by running the below command and see if there is associated  arbitration mailbox for OAB

Get-Mailbox –Arbitration | where-Object {$_.PersistedCapabilities –Like “*OabGen*”} | FL Name,Persisted*


There should be a associated arbitration mailbox for OAB. If there is not then create a new arbitration mailbox and assign it to OAB by running the below command

Set-Mailbox -Arbitration “arbitrationmbxname” -OABGen $true

If everything seems to be fine then please run the below command to see where the arbitration mailbox resides

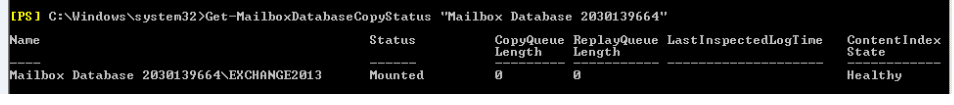

Now run the below command to check if the arbitration mailbox database is healthy

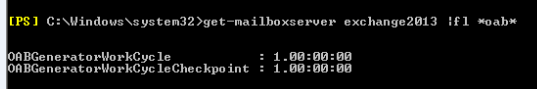

If the database if healthy and mounted then run the below command to check the OAB generation cycle work point


What is OAB generation cycle check point?

The default setting of the OAB update is generated once in every day and that’s why we have it as 1 specified. So we need to have this setting. If there are no values specified and if it is then null OAB will not be functioning.

We can run the below commands to change the above parameters value and if there is no value set on them.

Set-MailboxServer <SERVERNAME> -OABGeneratorWorkcycle 00.05:00:00

Set-MailboxServer <SERVERNAME> -OABGeneratorWorkCycleCheckpoint 01:00:00

Also we can force the OAB download to happen by running the below command like we do it for Exchange 2007 & 2010 and see if users are able to download OAB.

Update-OfflineAddressBook -Identity “Default Offline Address List (Ex2013)”

Also we can run below command to see if the certificate is issued to name in our example

Get-OutlookProvider | FL Identity,CertPrincipalName
Run the below command if there is no cert principal name issued
Set-OutlookProvider EXPR -CertPrincipalName:"msstd:<FQDN the certificate is issued to>"
This can be a guide for troubleshooting OAB since there could be few more factors considering OAB download not happening. Cheers :)

Sathish Veerapandian
MVP - Exchange Server
