Configure SSL certificate in Exchange server 2016

In this article we will have a look at the steps to configure SSL certificates in Exchange 2016 post installation.

If you have exchange 2016 in exchange 2013 coexistence you wouldn’t need to worry about this part. Because the already configured Exchange 2013 CAS server will have the capability to up proxy the requests to Exchange 2016 servers and you can stay relaxed for a while until the you decide to remove the exchange 2013 .

But if you have them in Exchange 2010 coexistence then you will need to move all of your external URL’s and place your SSL certificates into the Exchange 2016 servers.

Now we will have a look at how to place an  SSL certificate request in Exchange 2016 and complete them using a third party CA.

The configuration is the same as exchange 2013 and the only change  is the for internet facing CAS server will be now  internet facing mailbox server.

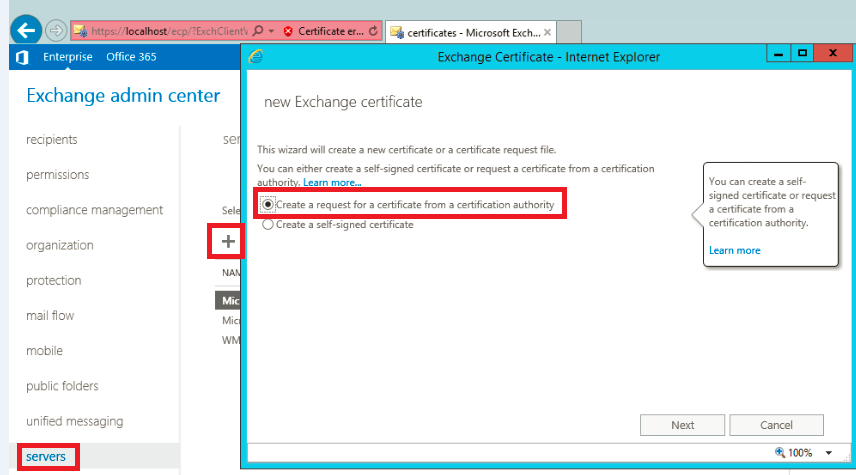

In-order to perform this action open EAC – click servers – and select certificates

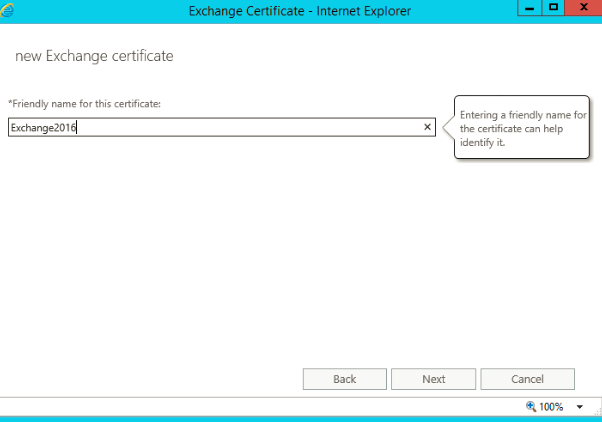

Give it a friendly name as below

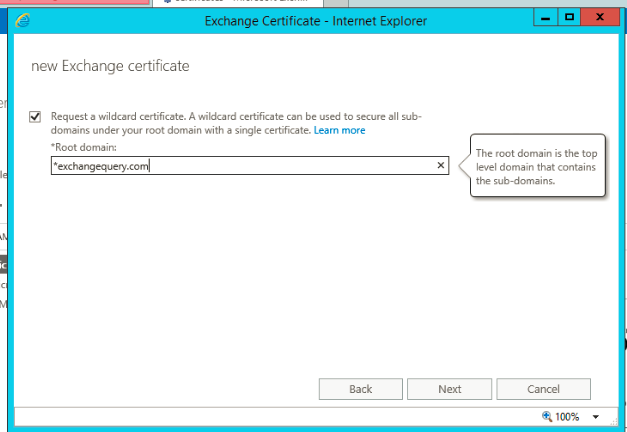

Enter the domain name

If you are going to use wild card you can select the wild card certificate option.

Using wild card will cover your root domain and additional it covers one subdomain .

In my case i’m using wild card since its a lab and i’m using a complimentary subscription provided by digicert through MVP in my case it would cover,, etc.,

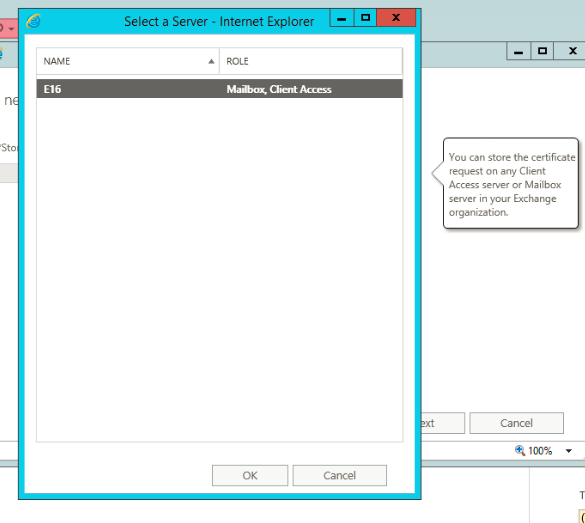

After this completes just click on next and choose one internet facing mailbox server in Exchange 2016

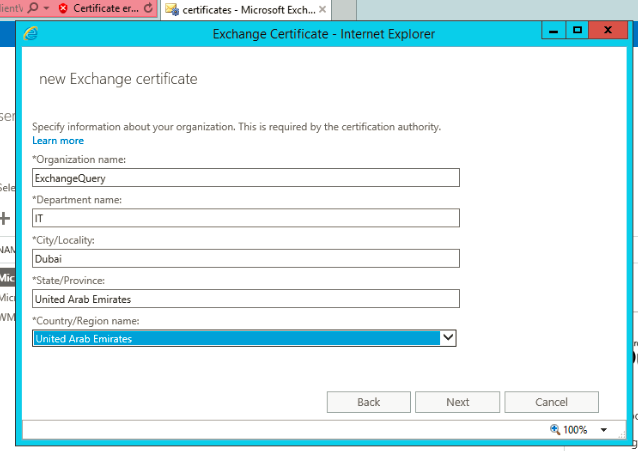

Fill the required information as below

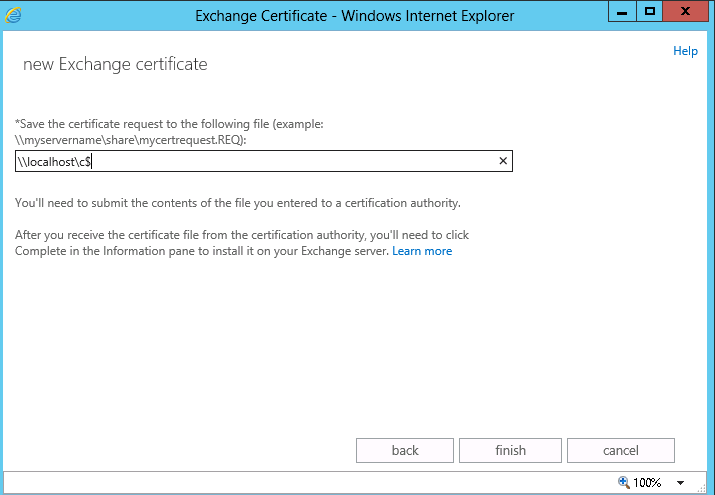

place a location to save the private key as below

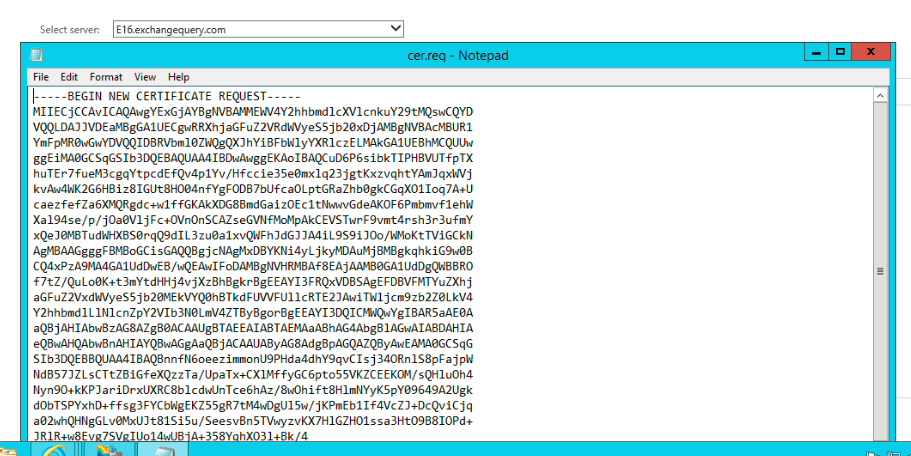

You can see the cert request generated as below in the location you mentioned


After the above task is completed  you can see the certificate request in pending state in the certificates tab as below

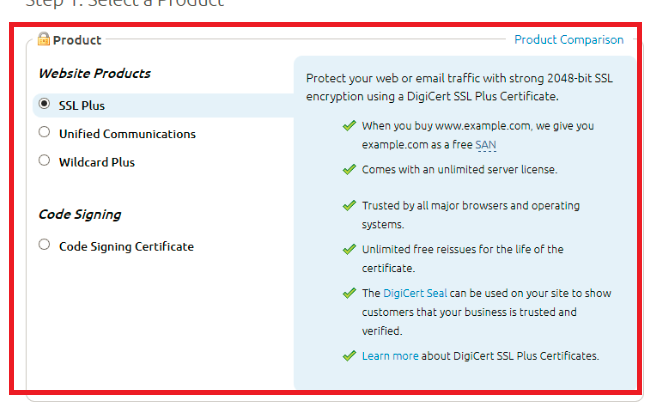

Now we can submit this request to a third party CA and get a new SSL certificate for your domain.

There are so many good providers but i recommend digicert as i have seen their support to be very prompt and all together provide a competitive pricing

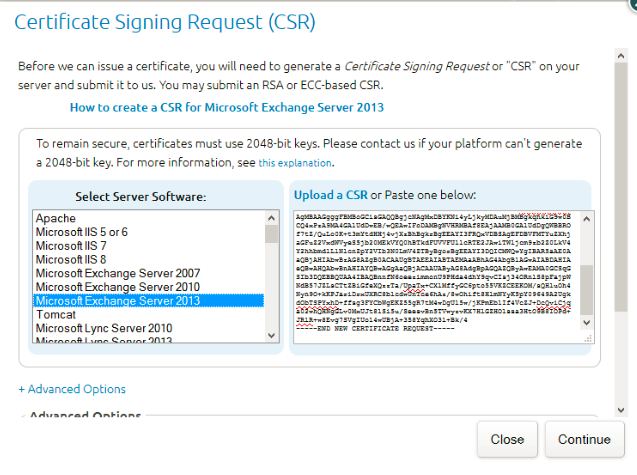

Now copy paste the CSR request we generated in Exchange 2016 as below .Now you can select the server software as exchange 2013 and with that it would be working until they add exchange 2016.


Once you get the SSL certificate from the certificate provider now we need to complete this request by importing them into the Exchange 2016 internet facing  server.

You can see the certificate that we requested in pending state as below

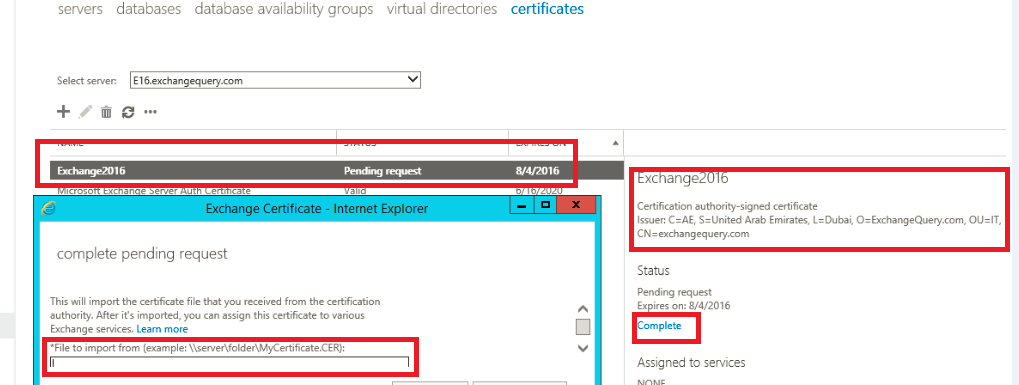

So click on complete and you will get a pop up window to import the SSL certificate.

Just import the certificate that you got from the certificate provider and then complete the request.

Now we have successfully completed the SSL certificate request in Exchange 2016


Sathish Veerapandian

MVP – Exchange Server

Steps to perform SSl Certificate renewal in Exchange 2010/2013

In this article let’s have a look at things to consider during SSL certificate renewal in Exchange 2010 and 2013 environment.

First we need to confirm what type certificate we are using, i.e., the third-party certificate or self-signed certificate. And then we need to check the existing 3rd party certificate is associated with what all exchange services, number of SAN entries we have  and note down them.

Let’s see the procedure of renewing the certificates for third party and self-signed.

For Third party Certificate Renewal

For renewing the third-party certificate, we need to apply a new certificate request from the third-party CA, then import the certificate to the Exchange servers and enable the related service (IIS, IMAP, POP, and SMTP) on the Exchange servers.

Follow the below steps:

Step 1: Obtain an SSL certificate. Purchase an SSL certificate from a well-known certification authority (CA).

Step 2: Generate and submit the certificate request: create a new certificate request for Secure Sockets Layer (SSL) services.

  1. Open Exchange Management Shell
  2. Run the following command, replace domain name and friendly name with your domain name and display name, and then run below command:

New-ExchangeCertificate -GenerateRequest -SubjectName “C=US, S = Contoso, L = Toybox, O = Test, OU = IT, CN =” -domainname,,  -FriendlyName -privatekeyexportable:$true -path c:\cert.txt

IMP Note:

“DomainName” is used to populate one or more domain names (FQDNs) or server names in the resulting certificate request. We can replace ‘domainname’ according to our own environment.

“FriendlyName” is used to specify a display name for the resulting certificate. The display name must be lesser  than 64 characters.

In SubjectName property, we can use the proper subject name by our own environment: c for country/region name, o for organization name and cn for common name.

  1. Submit the request to the certification authority and have the CA generate the certificate

Step 3: Enable the certificate on the Default Web site after your certificate has been generated, you must import it and then enable the certificate on the Default Web site.

  1. From the computer where step 2 was run, import the certificate. To import the certificate, open EMS and run the below cmdlet:

Import-ExchangeCertificate -path c:\cert.cer

Note: “c:\cert.cer” is the location and name of our certificate in my example.

  1. Copy the thumbprint of the certificate, which is the digest of the certificate data.
  2. Enable the certificate on the Default Web site, run the cmdlet in EMS and paste the copied thumbprint to the following cmdlet:

Enable-ExchangeCertificate -thumbprint <copied thumbprint value> -services “IIS,IMAP,POP,SMTP”

Note: Using the “enable-ExchangeCertificate” cmdlet will update the certificate mapping and replace the existing certificate that is configured in IIS, IMAP4, POP3, SMTP.

Step 4: Require the Client Access server virtual directories to use SSL

Step 5: Perform an IIS reset. Try browsing OWA and see if you get any errors

For Self Signed Certificate Renewal

For renewing the self-signed certificate, we need to get the old Thumbprint property of the expiring self-signed certificate, and then use New-ExchangeCertificate to renew the certificate and then enable the related service to the new certificate.

To get the existing thumbprint value


Get-Exchangecertificate | fl


Important thing to note down the self-signed certificate should have a value True in the column IsSelfSigned

Then use the command remove-Exchangecertificate to remove the old expired certificate


Remove-ExchangeCertificate -Thumbprint 5113ae0233a72fccb75b1d0198628675333d010e

You can use the command New-ExchangeCertificate to create a new certificate

Run the below command to perform the action

New-ExchangeCertificate -FriendlyName “SelfSigned Certificate” -KeySize 2048 -SubjectName “c=IN, s=, l=, o=CONTOSO, ou=IT, cn=CONTOSO.COM” -DomainName MAIL.CONTOSO.COM, AUTODISCOVER.CONTOSO.COM -PrivateKeyExportable $True


Below are the important things to keep in mind:

  • You can assign only one certificate to the Default Web site at a time. I would recommend deleting the old certificate as it is useless and will create confusions because it will not be used by any services once we assign the new certificate.
  • Ideally it should break or bring own any services while installing the new certificate. However, we may need to do an IISreset (not always but we may need it). So for few seconds till your IIS comes back we will experience a disconnection for few seconds
  • Certificates cannot be changed after they are signed, otherwise they would provide no security. Once issued, a certificate holds all SANs. This means that a certificate would have to be revoked and a new one has to be issued to add a new SAN.
  • You should first find out which names you want to register, because revoking and reissuing will most likely cost extra money. And also adding SAN entries will cost you extra money. If you have edge servers then the new certificate created must be imported on them and new edge subscription must be created.
  • When you order a Unified Communications Certificate from a third party you can secure all the SAN names you need with one easily manageable certificate. After your Multiple Domain (UCC) SSL certificate is issued, you can add or remove Subject Alternative Names (SANs) at any time. SANs are the additional, non-primary domain names secured by your UCC SSL certificate. However, keep in mind: Changing your SANs generates a new certificate, which you must install on your server. Your old certificate only remains valid only for 72 hours and has to be replaced with new entries.
  • Public trusted CA’s shall not issue a certificate with an Expiry Date later than 1 November 2015 with a SAN or Subject Common Name field containing a Reserved IP Address or Internal Server Name. As from 1 October 2016, CAs shall revoke all unexpired Certificates.
  • If you are a server admin using internal names, you need to either reconfigure those servers to use a public name, or switch to a certificate issued by an internal CA before the 2015 cutoff date. All internal connections that require a publicly-trusted certificate must be done through names that are public and verifiable (it does not matter if those services are publicly accessible).
    What things comes under internal name ?

    Any server name with a non-public domain name suffix. For example, http://www.contoso.local or server1.contoso.internal.
    NetBIOS names or short hostnames, anything without a public domain. For example, Web1, ExchCAS1, or Frodo.
    Any IPv4 address in the RFC 1918 range.
    Any IPv6 address in the RFC 4193 range.

Also Refer –


Sathish Veerapandian

MVP – Exchange Server
