Configure Text Messaging Delivery in Exchange 2013

By using the text messaging delivery option we would be able to route text messages to user’s mobile phones and notify them whenever a new email, Meeting request reaches the user mailbox.

In this article we will have a look at steps to configure Text Messaging in Exchange 2013

First let’s have a look at the functionality and the components involved in the text messaging delivery option

Exchange first stamps the Text messages with the local email address in the categorizer for the user whom we have this option enabled.

Basically this Text Messaging Delivery works on two types of Transport Agents working on the message categorization part.

  • Text Messaging Routing Agent
  • Text Messaging Delivery Agent

These 2 agents’ works with a help of dedicated connector DeliveryAgentConnector for this functionality which is enabled by default from Exchange 2010

We can see this connector by running the below command

Get-DeliveryAgentConnector | fl

Once the emails is processed for any user for whom the email needs to reach his mobile device by these 2 transport agents  it then hand overs the job to the EWS. In EWS there is a component called textmessagingenabled. It verifies if  this parameter enabled in OWA Virtual Directory. If this option is enabled then the text message is transferred to the user via ews to the public ip address. It reaches user telephone service provider and then message is delivered to user as message notification.


Below are the steps to configure the text messaging delivery option

First step is to check if the text messaging option is enabled on the CAS server OWA Virtual Directory.

Run the below command to check if its enabled

Get-OwaVirtualDirectory |Ft Servername,textmessagingenabled



To enable text messaging in all CAS servers  run the below command

Get-OwaVirtualDirectory | Set-OwaVirtualDirectory –TextMessagingEnabled $True

To disable text messaging in CAS  servers run the below command

Get-OwaVirtualDirectory | Set-OwaVirtualDirectory –TextMessagingEnabled $False




Now we need to ensure the transport agents are enabled only then textmessaging option will work.

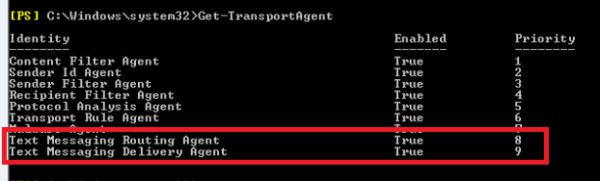

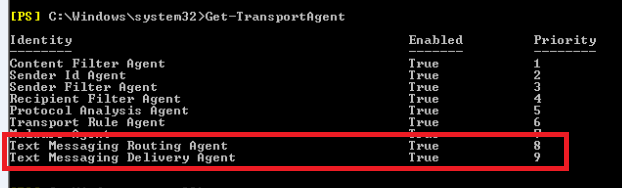

Run the below command to check if the both the agents are enabled


If you find it disabled you can run below command to enable them

Enable-TransportAgent   -Identity “Text Messaging Routing Agent”

Enable-TransportAgent   -Identity “Text Messaging Delivery Agent”

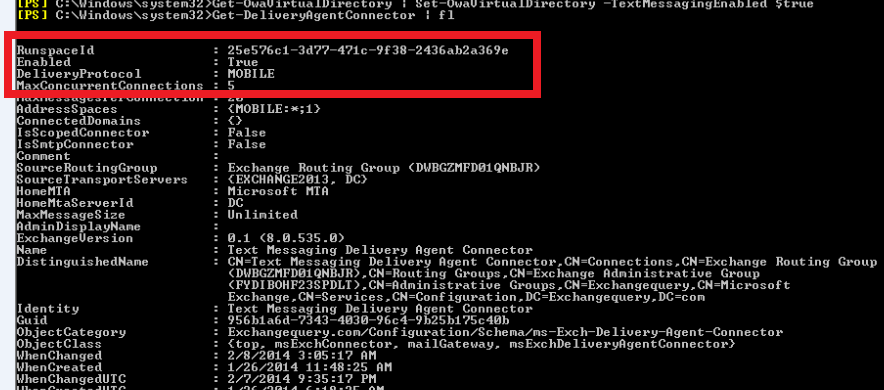

Now run the below command to check if the delivery agent connector is enabled  and ensure that deliveryprotocol  to mobile is enabled.

Get-DeliveryAgentConnector | fl


We are done with the config on the server side . We need to enable this option for end user through OWA .Follow the below steps


Log on to outlook web app for user whom we need to enable this functionality  and click on options

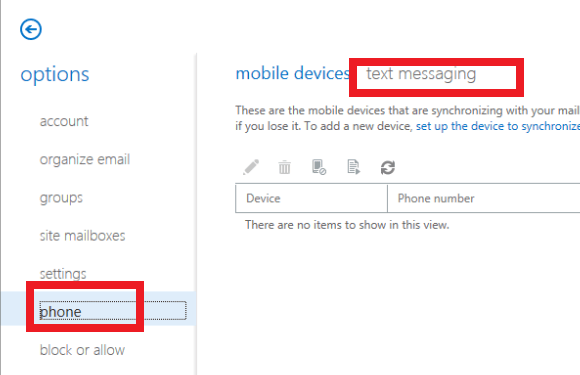

Now Click on phone and click on text messaging

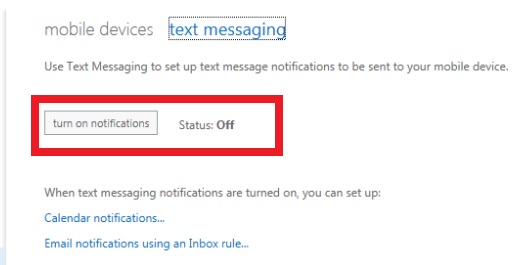

Select Turn on Notifications option

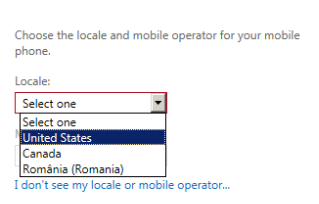

Choose the mobile operator locale




Choose the mobile operator

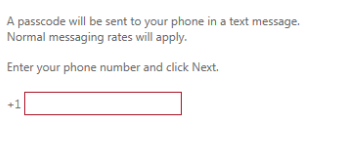

Enter the phone number

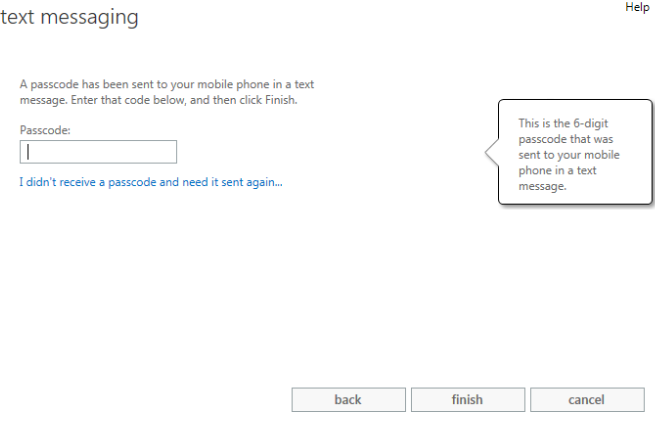

Enter the Passcode sent to your mobile



Click on finish and we are done configuring text messaging notifications for user.


End user will be charged from his mobile operator for each and every notification that he receives in his mobile device.

Sathish Veerapandian

5 thoughts on “Configure Text Messaging Delivery in Exchange 2013

  1. October 18, 2014 at 2:54 am Reply

    Hello Dear, are you in fact visiting this web site
    on a regular basis, if so afterward you will without doubt get pleasant knowledge.


  2. kersg August 26, 2015 at 10:14 pm Reply

    Can you allow users to get a text for a voicemail or a calendar entry, but not for email?


  3. Dududu1977 July 27, 2016 at 12:06 pm Reply

    Hello, can you say me how can I have other mobile operator (I’m looking for French) ? Thank


    • sathishveerapandian August 22, 2016 at 9:17 am Reply

      If you don’t see your mobile service provider listed in the Text messaging dialog box in Outlook Web App options, then Microsoft have not yet established a relationship with your mobile service provider.
