Failed to store data in the Data Warehouse – SCOM Reports – Exchange Microsoft.Exchange.15.MailboxStatsSubscription

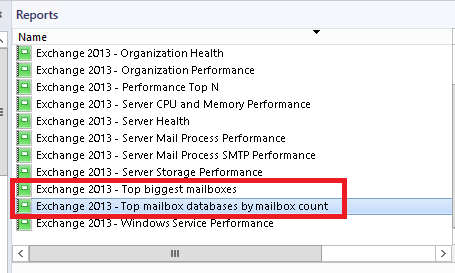

Recently when we tried to generate the top mailbox statistics report with the below option available from SCOM reports we weren’t able to generate them.


It was giving an empty report without any values.

Along with that few report data’s only for Exchange Servers like database IO reads/write  while trying too were empty with no values.

Upon looking into the operations manager log saw the below event ID.

Log Name:      Operations Manager
Source:        Health Service Modules
Date:          20.04.2017 09:36:58
Event ID:      31551
Task Category: Data Warehouse
Level:         Error
Keywords:      Classic
User:          N/A
Failed to store data in the Data Warehouse. The operation will be retried.
Exception ‘InvalidOperationException’: The given value of type String from the data source cannot be converted to type nvarchar of the specified target column.
One or more workflows were affected by this.
Workflow name: Microsoft.Exchange.15.MailboxStatsSubscription.Rule
Instance name:
Instance ID: {466DF86F-CC39-046A-932D-00660D652716}
Management group: ExchangeQueryBy the above error we can see that this mailbox statistics subscription  rule has some problem and hence the reports were not generated.

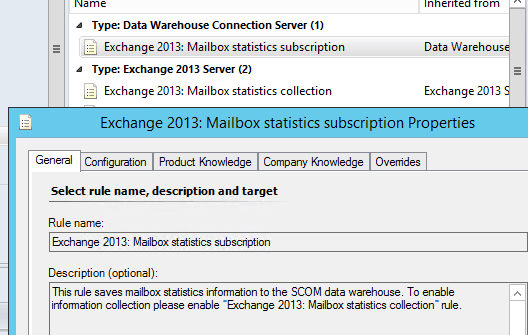

Below 2 rules are required to be enabled to generate this report:

1) Exchange 2013: Mailbox Statistics Subscription.
2) Exchange 2013: Mailbox Statistics Collection.


So by looking into the above event we can see that the SCOM is having trouble in writing the data into this target tables in the data-warehouse from the stage table.First the generated alerts are written on the operational stage table database by the SCOM. Then the operational database will insert these bulk datas into its Target DataWareHouse. It uses the option SQL bulk Insert because of the amount of data that it needs to insert from its stage table and needs to take this process.

During this process of bulk insert it will compare the value of the data that needs to be inserted with its default allowed values (NVARCHAR values for each tables). So if any of the alert titles have the values more than its default allowed limit then we will run into this problem.

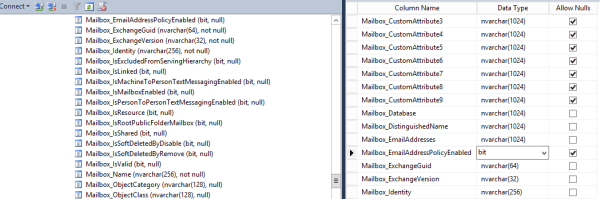

This value can be seen in active stage under the columns in the operational manager database – Tables – Exchange2013mailboxstatsstaging- columns

Here we can see the nvarchar values for each properties of the mailbox which will be used to generate the mailbox statistics report from the scom 2012


So here if any of  these nvarchar values which is required to generate the report value have exceeded the allowed limit then it will fail inserting the data into the datawarehouse. For example the default length of the allowed limit for Mailbox_EmailAddress is 1024.

Lets say if there is one system mailbox which has multiple smtp addresses added in them which exceeds this character limit then the  entire mailbox stats report will fail.

The SCOM requires in data type Nvarchar for Exchange because to support the unicode type for multi languages mainly. More details on SQL data types can be read here.

In our case we had a service account mailbox which had multiple SMTP addresses added on them and that exceed the allowed limit.

If any one run into the issue here is the simple command to identify the mailbox which has Email addresses of more than 1024 characters.

get-mailbox | where-object { $_.EmailAddresses.ProxyAddressString.ToCharArray().Length -ge 1024 } | foreach-object {write-host “$_”}

Once we find that mailbox we can remove that additional SMTP addresses and make the value less than 1024. After this the reports will be generating without any issues.

Another solution : ( Not Recommended)

Extend the nvarchar field values on the stage table as well as  target table (Exchange2013.MailboxProperties_) in DataWareHouse which will allow the data to get processed and generate the reports even if it has a large amount of data.

Its better not to change the default values as it might go as unsupported model , rather modifying  the mailbox and reducing the character limit which will keep everything in place without any customization.

Thanks & Regards
Sathish Veerapandian

Configure Throttling Policy In Exchange Server 2016/13/10

The concept of throttling policy is first introduced in Exchange 2007, by which admin can impose some policies that prevents user application from sending number of Remote Procedure Call per second.
Throttling policies are meant for enhancing the Exchange performance in the organization. It keeps a track of consumption of resources by the end-user and also imposes the bandwidth limits. Continue reading

Foreign Connectors VS Delivery Agent connectors

Over the period of time these foreign connectors have been playing a major role in handling the non SMTP messages from the applications and FAX machines.

These foreign connectors manage a file transfer system process to route inbound/outbound messages from a NON-SMTP systems.

For outbound systems it uses the drop directory where applications must create and submit their own messages to this drop directory .
These foreign connectors checks if the messages are properly formatted (MIME)
and then move them to the drop directory. From here Exchange has done its job and its the responsibility of the NON-SMTP system to pick these messages and deliver them.

For the inbound flow the message should be submitted to to the replay directory from the non-smtp system. We need to make sure that the submitted messages are properly formatted in MIME or TIFF(Usually used format) so that  exchange picks them up, processes these messages and delivers them to the directory.

Usually these directories are not scoped to these connectors and we need to run the below command  an example below

Set-ForeignConnector -identity Test -DropDirectory \\exchange2010\share

Running the above command will create a shared directory for the outbound so that after exchange drops the email the non-smtp system will pick these messages for delivery.

From Exchange 2013 these foreign connectors have been depreciated.Since it uses  file transfer systems to route the messages through drop(outbound) and replay (inbound) the sender will not be aware if the message has been delivered to the recipients.

But still this foreign connectors can be configured in Exchange 2013

From Exchange 2013 Microsoft recommends to have the delivery agent connectors which is having a simpler configuration compared to the foreign connectors.

Below are the advantages of having the delivery agent connectors:

  1. There is no need to manage file transfer to a Drop directory and check the drop directory quota, permissions etc.
  2. We can use the queue management for messages that are routed to non-smtp systems through this method.
  3. We can verify and acknowledge the message delivery to which is a major benefit when compared to foreign connectors.


Each delivery agent is associated with a Delivery Agent connector, which queues messages routed to the delivery agent for processing and delivery to the non-SMTP device or system

A delivery agent is a component installed in the Transport service of a Mailbox server.
Example there is a Citrix Virtual Delivery Agent which is used for one of the citrix application to route the non smtp messages.
If there is a agent required for your non-smtp system then we need to install that agent on Mailbox servers of exchange 2013 & 2016

By Default there is a text messaging Delivery Agent connector.
This is an agent which is installed by default in the Mailbox Servers of Exchange 2013 & 2016.
This delivery agent connectors are available from exchange 2010 where they are present in hub roles.

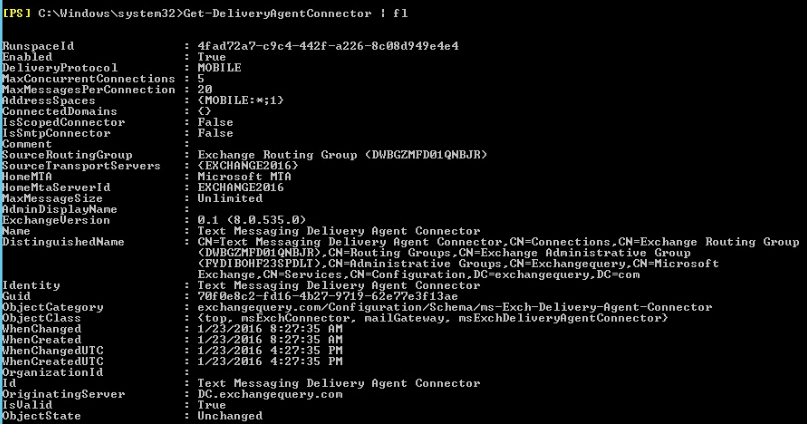

By default it will have only the default mobile delivery agent connector. You can see the delivery protocol is mentioned as MOBILE.

So for other delivery agent connectors we need to specify the protocol types.

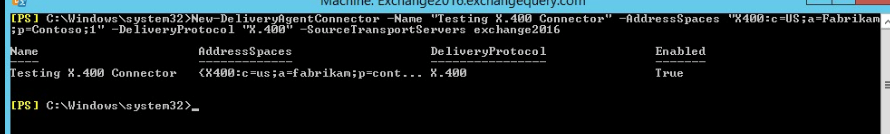

Example if we need a delivery protocol as x400 which most of the fax applications and non-smtp application uses we need to run the below command.
New-DeliveryAgentConnector -Name “Contoso X.400 Connector” -AddressSpaces “X400:c=US;a=Fabrikam;p=Contoso;1” -DeliveryP
rotocol “X.400” -SourceTransportServers Mailboxserver


After performing the above the  message is routed to a Delivery Agent connector, the associated delivery agent performs the content conversion and message delivery.


Sathish Veerapandian

Microsoft Exchange UPDATES Released

Microsoft Exchange UPDATES Released :

Microsoft has released Exchange 2013 CU7, Exchange 2010 SP3 RU8 and Exchange 2007 SP3 RU15.

Exchange 2013 Cumulative Update 7 can be downloaded –
Issues that Exchange 2013 CU8 resolves –

Exchange 2010 Update rollup 8 up can be downloaded =
Issues that Exchange 2010 update rollup 8 resolves –

Exchange 2007 Update rollup 15 up can be downloaded
Issues that update rollup 15 resolves –


Sathish Veerapandian

MVP – Exchange Server
