In this article we will have a look at the steps to add additional SIP domain in the already existing Lync 2013 deployment.

In short we need to perform the following tasks to add a new SIP domain

1) Add the new SIP domain  in the existing Lync topology.

2) Publish the Topology and install the wizard on all the front end and edge servers.

3) Update your internal certificate with the new SIP domain entry through CA and then assign the new internal CA to the FE servers

4) Create the certificate for the new SIP domain and then install them on the edge servers and on the reverse proxy server .



Steps to add new SIP domain



1) First we need to add the new SIP domain to our topology

Inorder to do that we need to perform the following task

Open the Lync Server Topology Builder

Select download the topology from the existing deployment since we are going to modify the existing topology only

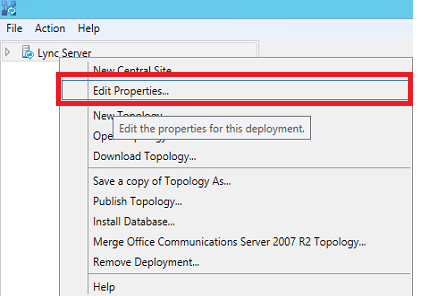

Once the topology builder is open – Right click on the topology and click edit properties





Click on add new domain and add the new sub domain.

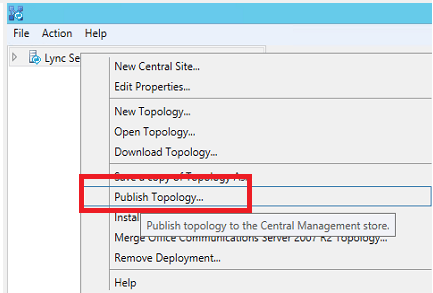

Once done click on publish topology





Once it’s done click on the setup and rerun the setup



Note :

We have to rerun the above setup on all the FE servers and the edge servers.



Now we need to create the DNS records

The DNS records must be created in the following order





Port	Service Protocol	Type	Entry	Server	Request Type
		CNAME	lyncdiscover.exchangequery.com	Add it to your public DNS entry	New
		A	sip.exchangequery.com	Point it to your FE server pool
		A	meet.exchangequery.com	Point it to your FE server pool
5061	_sipfederationtls	SRV	sip.exchangequery.com	Should be created on your public DNS
443	_sip		sip.exchangequery.com	Should be created on your public DNS



Note:

This above creation is only for IM and presence. For dial-in ,Audio/Video respective entries should be created in the DNS.

Now we need to create the certificate for the new SIP domain.

Updating your internal Certificate  with the new SIP domain  through CA and then assign the new internal CA to the FE servers is a normal process so im not explaining that part in this article. But make sure that you run the certificate wizard in the FE server and assign the new updated internal certificate.

For external certificate we can create the certificate through digicert,go daddy etc depending upon with whom you have  bought the public certificates.

In this scenario lets take an example of creating certificate from the digicert.

Download the digicert utility tool for windows.

Create your private key and CSR by using this utility and request certificate from digicert.

Open digicert and click on create CSR.





Type in common name and select SSL certificate since we require SSL certificate.

Add all the required SAN’s should be added as shown below.

Choose the provider type









Now after click on create we will get the private CSR key generated for the new SIP domain as below





Now send this private CSR to digicert for the certificate . Once they issue for this new domain just download this certificate and install them on the edge servers and your reverse proxy servers.

Inorder to do that please log into http://www.digicert.com and log in to your account and click on request certificate.





Now choose the new SSL certificate type and paste the private CSR request we generated.



Now type the common name you wish to call the certificate . In our case we need to choose the server platform Lync server 2013 since we need to import this certificate on our edge server.







After this go to my certificates and download the certificates.Once they issue for this new domain just download this certificate and install them on the edge servers and your reverse proxy servers.

Now import this certificate on the edge servers by using Lync Server Deployment wizard.

Later request this same certificate for your reverse proxy server (F5,Kemp or TMG) on your certificate request and then install them on reverse proxy server for the mobile connectivity.

Now we have successfully added the new domain in our Lync Environment.

Thanks
Sathish Veerapandian

MVP- Exchange Server
