Setup Active Directory  thumbnail photo for Outlook ,Skype for Business client

In order to maintain identity information users of web-based applications or desktop-based applications want to set image in their account profile.

In a similar condition surfaced while working with an email server giant, MS Exchange, a query arises ‘how to setup user account image in Exchange 2016?’ As an answer to the same, the following segment will be discussing a few workarounds to let users know of the same procedure.

Prerequisites for Image to be Setup

Some parameters are applicable on the images to be uploaded on the User accounts are mentioned below:

  • The size of the image should not be more than 10KB
  • The file format of the image should be JPG (JPEG)

Ways to Set Up Account Image on Exchange Server

 Step1: Configuration of Global Catalog

The step comprises of following procedure to be followed, to configure the copy of image attributes to Global Catalog:

  • Open your machine and login to your session

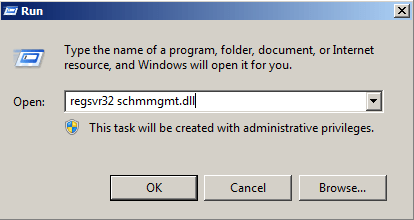

  • From your keyboard, press Windows key + R to open the Run window on the screen. On that window, type regsrv32 schmmgmt.dll and press Enter

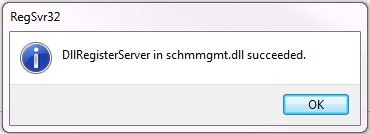

  • A ‘DIIRegisterServer in schmmgmt.dll succeded’ message box will appear as below in front of you, click on OK



  • Again, press Windows key+R, type mmc and press Enter

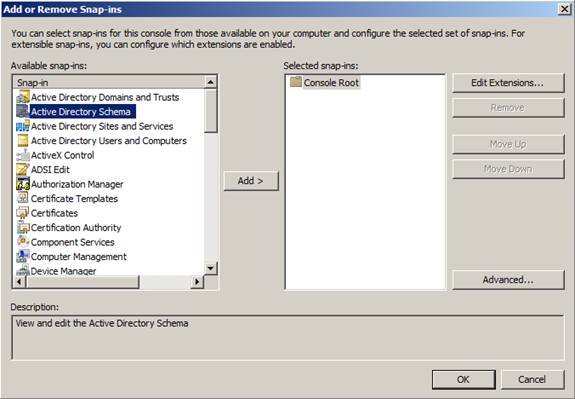

  • Go to the menu bar of window and click on File >> Add/Remove Snap-ins >> Active Directory Schema >> Add >> OK


  • Now expand the Active Directory Schema [<Your Server Name>] and then click on Attributes

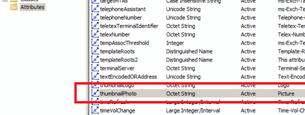

  • In attributes list, search for thumbnailPhoto attribute and double-click on it

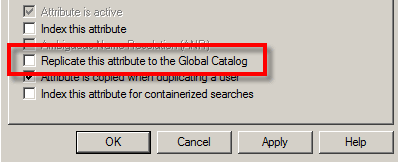

  • From the options displaying in front of you, check on Replicate this attribute to the Global Catalog >> OK


Step 2: Import Pictures to Active Directory Users

For importing the picture that you want to set on your Exchange profile, you require a cmdlet: Import-RecipientDataProperty. The cmdlet is being used to import image in Exchange 2016.


You have to open command prompt window and type the following cmdlet:

Import-RecipientDataProperty-Identity <Mailbox> -Picture -FileData ([Byte[][]$(Get-Content-path<Image Path> -Encoding Byte -ReadCount 0))


Step 3: Validating the Procedure

To validate or check whether the image has been setup on your account or not, go to initial page of the Outlook and check whether the image has been uploaded or not. If not, then you must have performed the procedure incorrectly. In this case, repeat Step 1 and 2 until the image is not uploaded.


After going through the above information, we concluded with the fact that configuration of domain controller, i.e. Global Catalog is quite an important fact. If the configuration were improper, then the resultant would be that the Active Directory schema would not be activated. As a result, it was impossible to set the image on Exchange 2016. Moreover, if all goes correct, then user will successfully be able to setup account image in Exchange 2016.

Thanks & Regards
Tej Pratap
